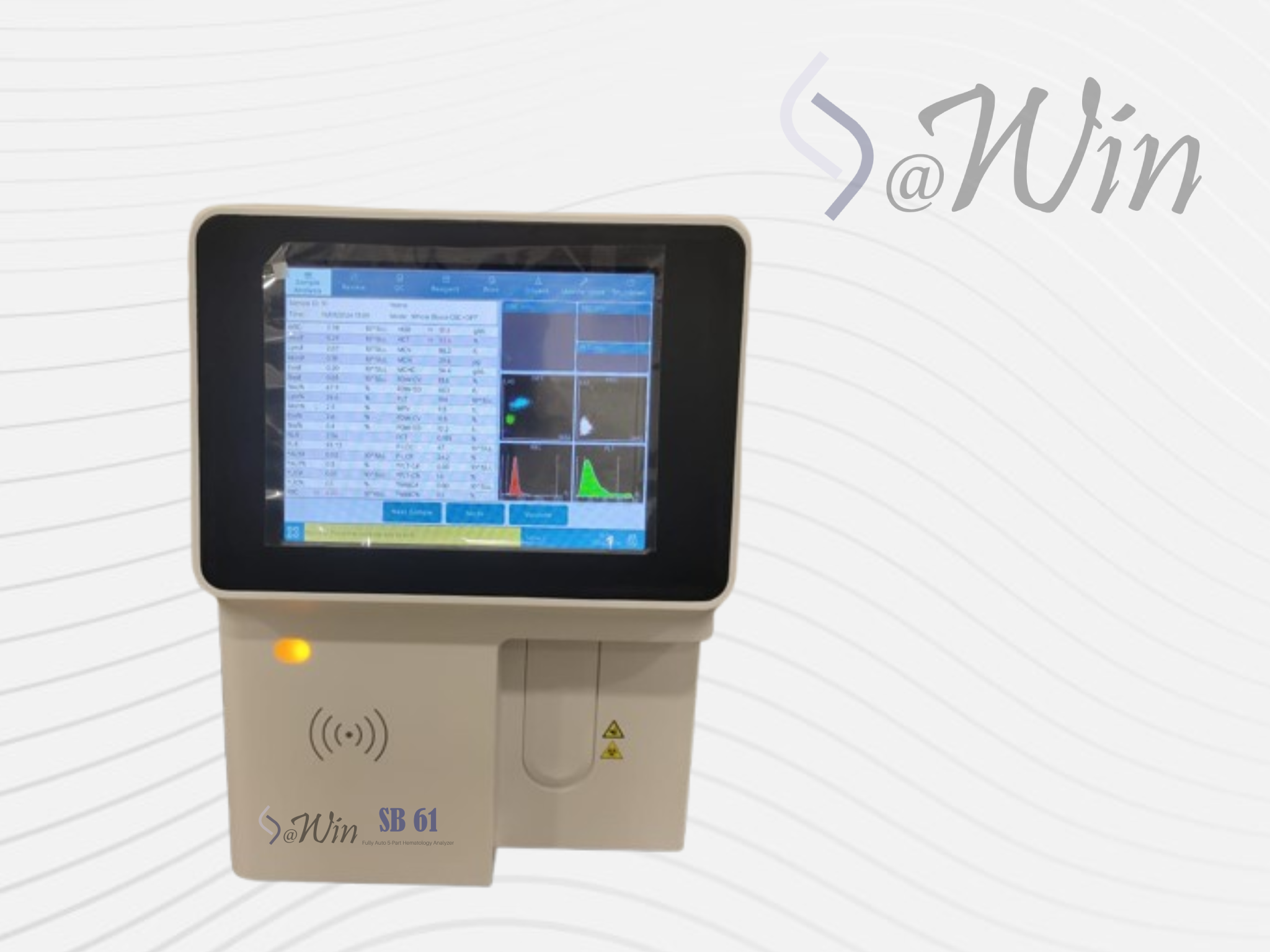

SB 61 Fully Auto 5 Part Hematology Analyzer
- Advanced sweeping technology ensures precise PLT measurements.
- SMART-FLOW patented liquid circuit for efficient operation.
- High-definition 10.4-inch touchscreen (1366×768) with glove support.
- Measurement technologies: Semiconductor laser scattering, flow cytometry, 3D scatter plots, and impedance analysis.
- Comprehensive data visualization with 2D/3D scatter plots, WBC/BASO, RBC/PLT histograms.
- Built-in printer and RFID card reader for seamless workflow.
- Stores over 100,000 records, including histograms, scatter plots, and patient information.

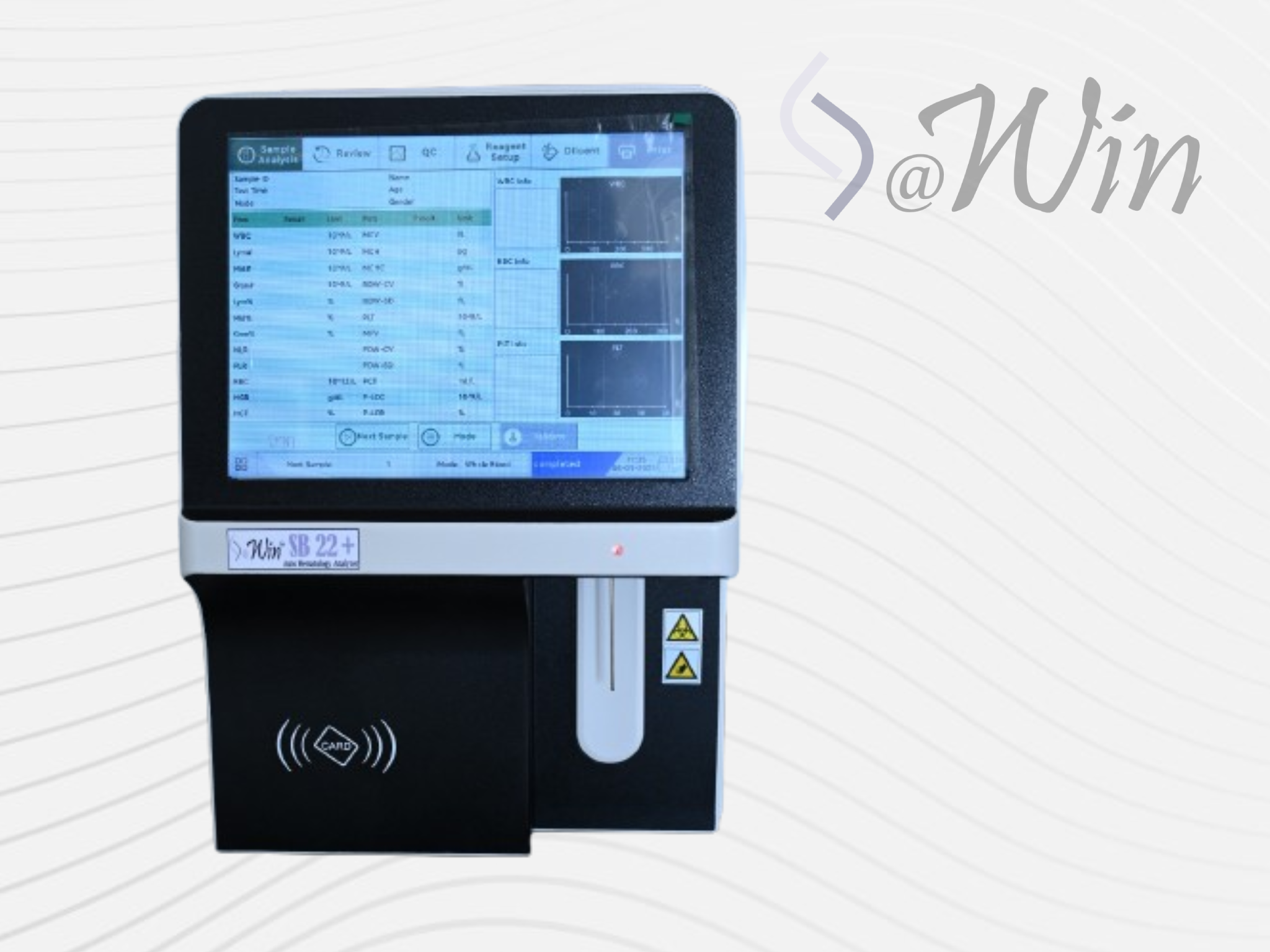

SB 22+ Auto Hematology Analyzer
- 3-Part Hematology Analyzer with 24 parameters.
- 3 histogram (WBC, RBC, PLT) and 3-level QC of L-J QC, X-B QC.
- Smart counting mode, compact and lighter design, built-in card reader and highlighted indicator light.
- Powerful data management - Flag information for better diagnostics.
- Real-time monitoring - Reagent status, Unit status, Test count in different modes.
- Smart maintenance - Hardware self-checking, multiple maintenance functions, smart prompt and one touch to remove error.
- Memory up to 500000 sample results.
- 10.4 inch touch screen with built-in and support external printer.
- 4 USB ports for mouse, keyboard, external printer connectivity and 1 network port for communication.

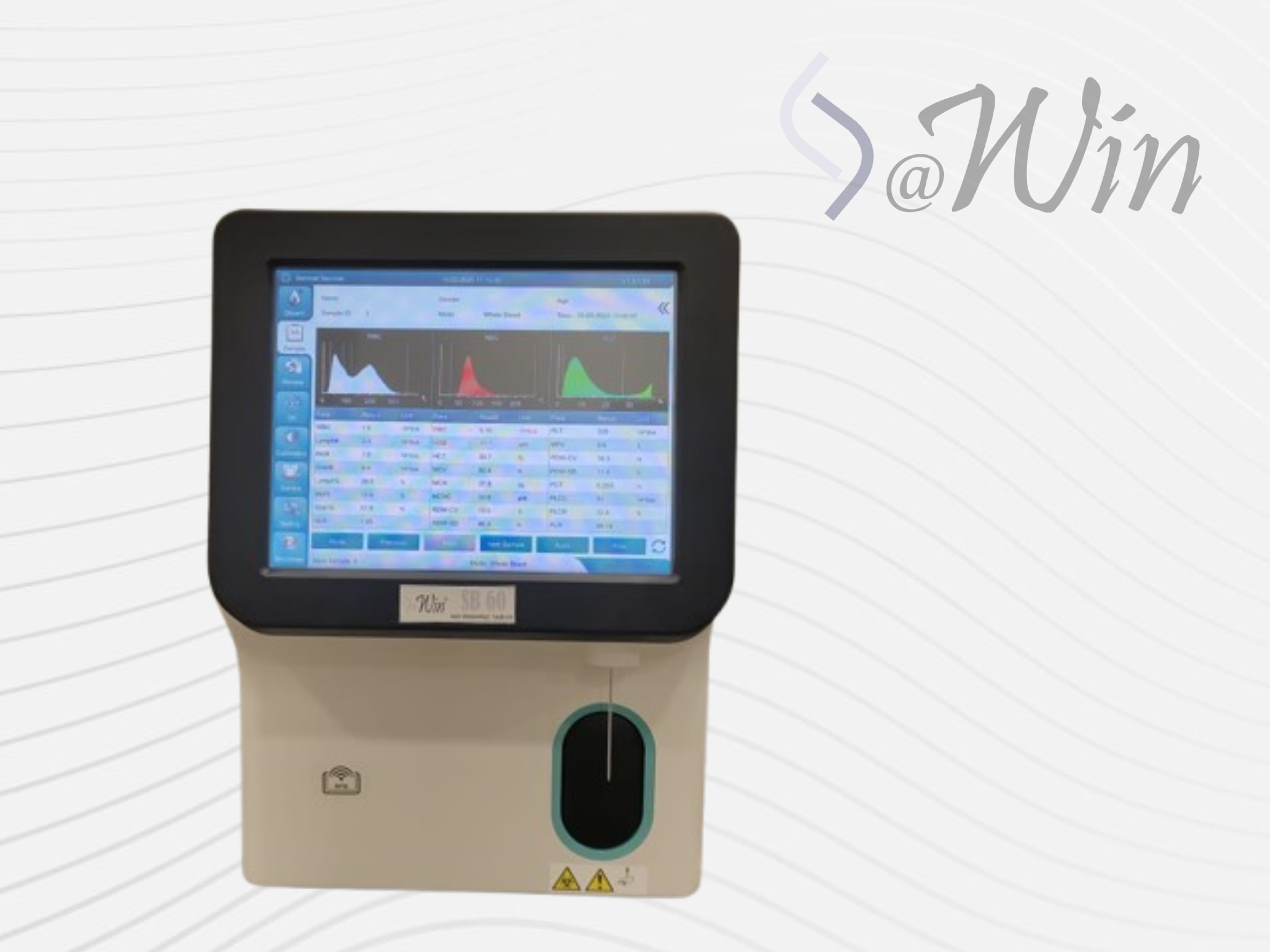

SB 60 Auto Hematology Analyzer
- 3-Part Hematology Analyzer with 21 parameters and 3 histograms for WBC, RBC, and PLT (Platelet).
- Accurate low-value PLT measurement using advanced cell pulse baseline tracking and restore technology.
- Throughput of 60 samples per hour with a double chamber (WBC & RBC).
- 10.4-inch LCD touchscreen with a built-in printer and card reader.
- One-key obstacle removal technology for quick fault elimination and efficient use.
- Storage capacity for 500,000 sample results, including histograms and patient data.
- Four USB ports with bi-directional LIS connection, supporting USB keyboard, mouse, USB disk, and USB printer.
SB 21 Auto Hematology Analyzer
- 3-Part Hematology Analyzer with 21 parameters and 3 histograms for WBC, RBC, and PLT (Platelet).
- Accurate measurement for low-value PLT using advanced cell pulse baseline tracking and restore technology.
- Detection speed optimized for efficiency, processing around 40 samples per hour with a double chamber (WBC & RBC).
- 10.4-inch LCD touchscreen with a built-in printer and card reader.
- Equipped with one-key obstacle removal technology for quick fault elimination and efficient use.
- Storage capacity for 500,000 sample results, including histograms and patient data.
- Four USB ports with bi-directional LIS connection, supporting USB keyboard, mouse, USB disk, and USB printer.

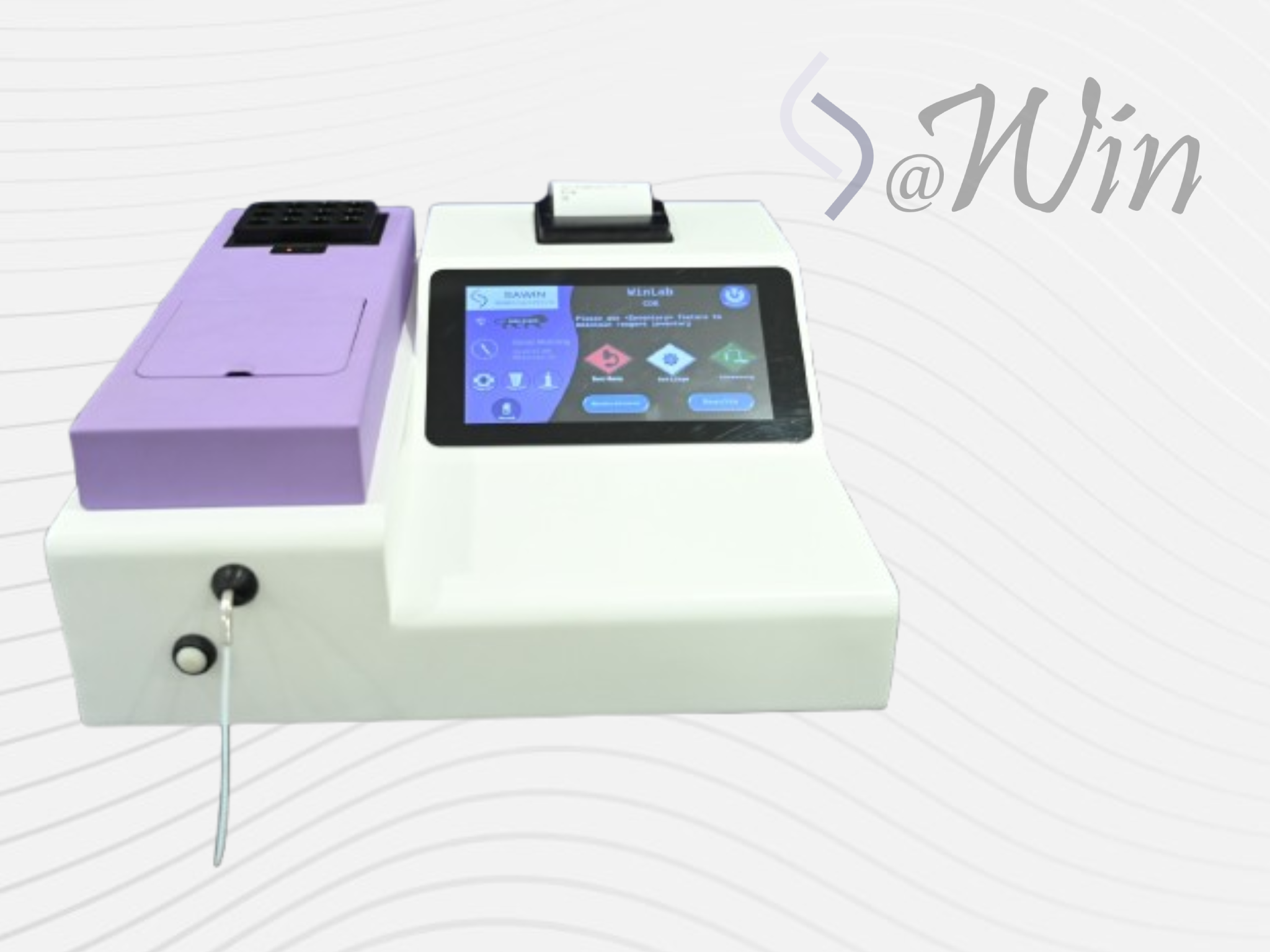

WINLAB Semi – Automatic Biochemistry Analyzer ( with Incubator )
- Supports up to 10 methods of end point, fixed time, kinetics, multi-standards for all methods supports upto 10 standards and absorbance
- Inventory management for monitoring of reagent stock and alerts on low stock.
- All - in - one optical system, high reliability and anti-interference
- 6 filters (340 nm-630 nm) + 2 free positions.
- Real time curve and QC graph print out
- Dynamic temperature control of peltier elements, 25°C 30°C 37°C.
- Up to 1000+ test profiles can be programmed
- Memory for 500000+ sample results with editable patient information and curves for each test
- Unlimited test results storage via cloud with wi-fi
- 4 USB ports, 1 ethernet port and HDMI port for external monitor
- 7 inch true color large display with touch screen

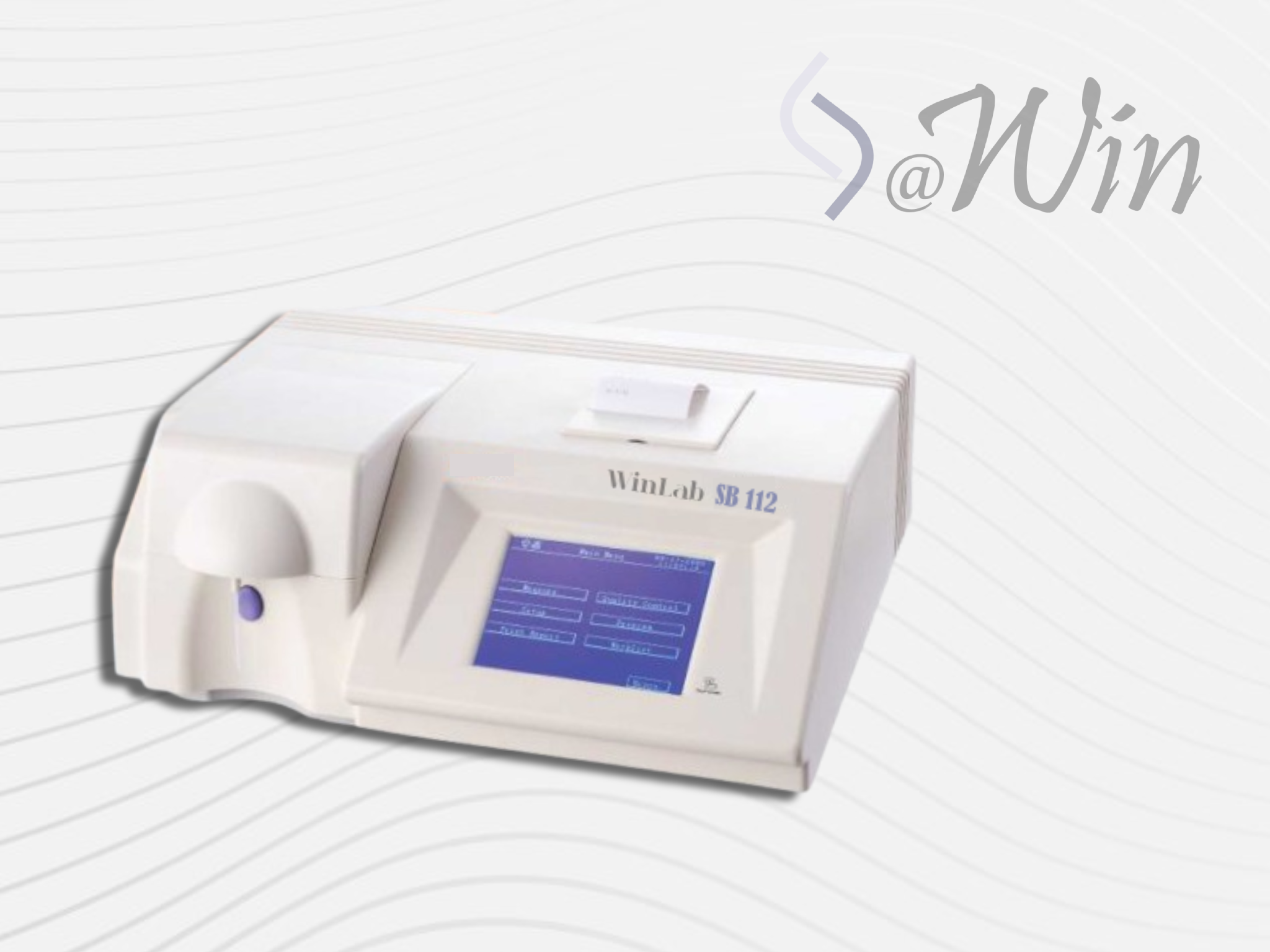

WINLAB SB 112 Semi-Auto Chemistry Analyzer
- Endpoint method, two-point method, kinetic method.
- The lamp can be turned ON and OFF through the program, which can effectively prolong the lifespan of the lamp.
- Wavelength range 340nm - 630nm (340nm, 405nm, 492nm, 510nm, 546nm, 578nm, 630nm).
- The quality control data and quality control charts can be printed.
- Built-in thermal printer, which can print results and reaction curves in combination.
- The well-designed circuit and heat dissipation structure improve the durability and anti-interference ability of the machine.
- Absorbance range 0.000 - 3.000 ABS.
- Light source of 12V/20W halogen lamp.
- Storage of 100+ chemistry assays and 3700+ test results.

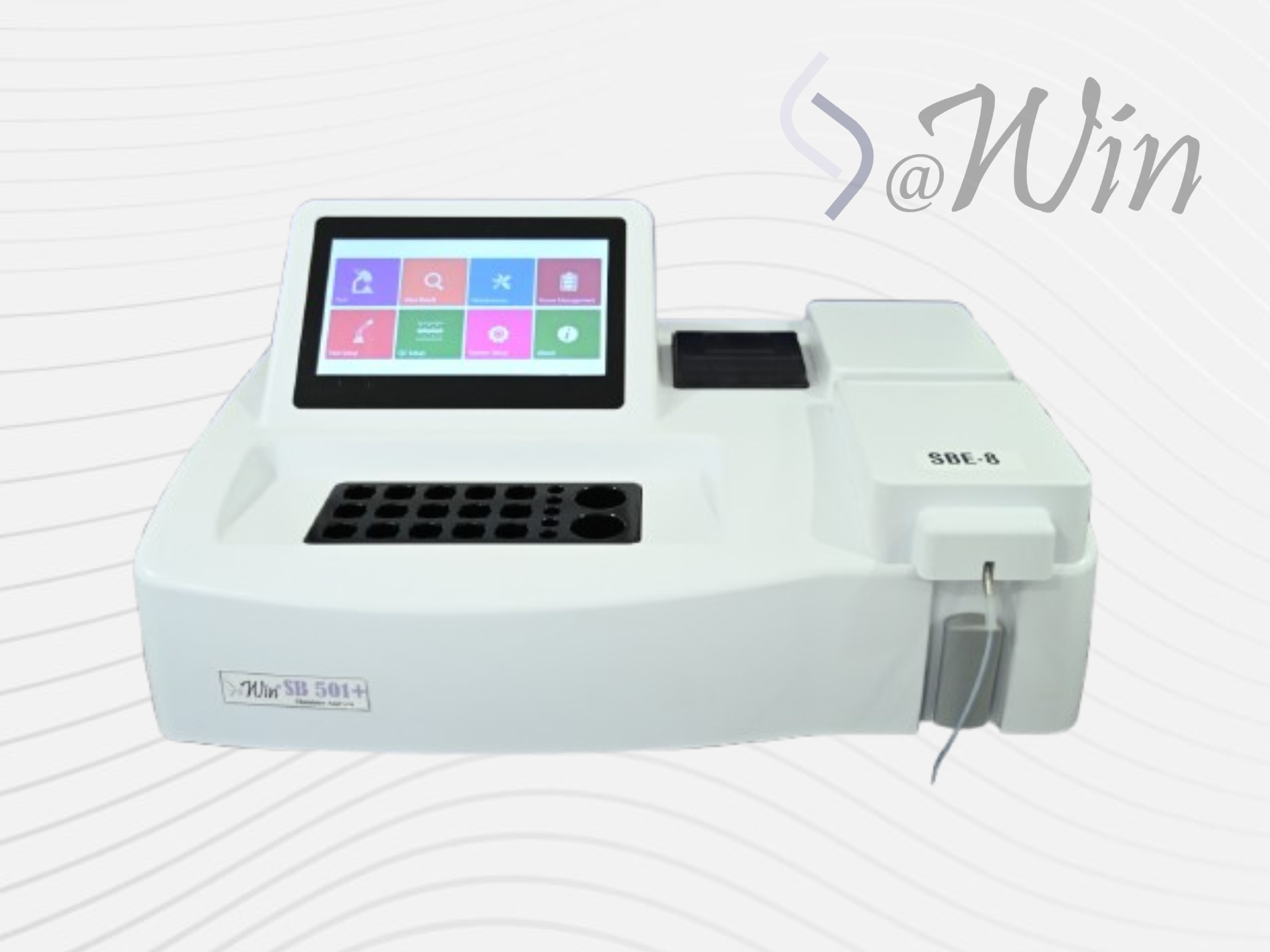

SB 501+ Semi-Automatic Biochemistry Analyzer ( with Coagulation & Incubator )
- End point, fixed time, multi-point kinetics, multi-standards upto 8 standards and coagulation.
- All - in - one optical system, high reliability and anti-interference
- Separate Coagulation adapter and cuvettes for coagulation tests
- 7 filters (340 nm - 630 nm) + 2 free positions, ±2CML precision
- Real time curve and Auto drawing of QC figures
- Dynamic temperature control of peltier elements, 25°C 30°C, 37°C.
- Up to 300 test profiles can be programmed
- Memory for 200000 sample results with editable patient information
- 4 USB ports, 1 ethernet port and 1 USB Slave port
- Built-in printer with support external printer
- 7 inch true color large display with touch screen

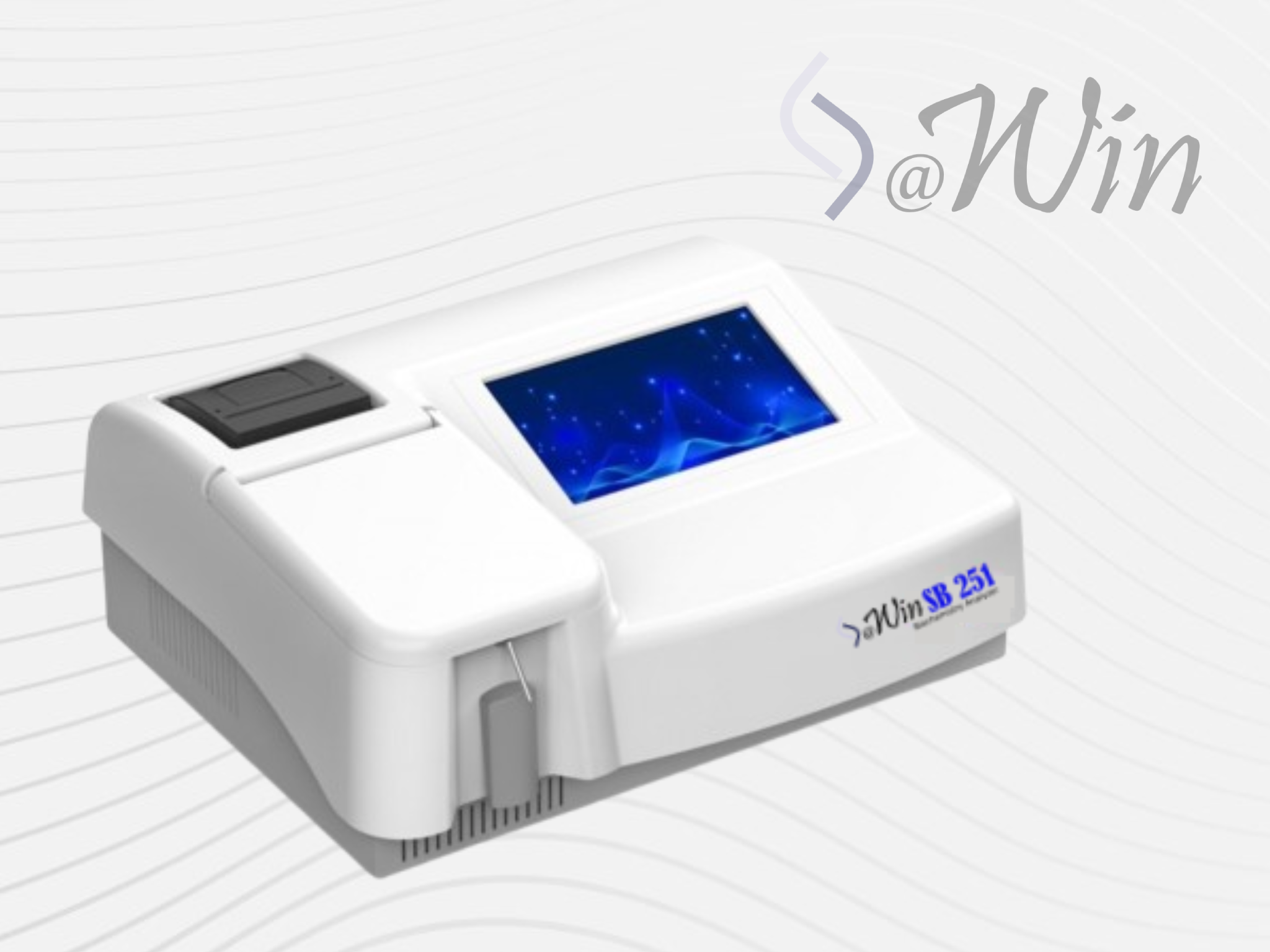

SB 251 Biochemistry Analyzer
- End point, fixed time, multi-point kinetics, multi-standards upto 8 standards and coagulation.
- All - in - one optical system, high reliability and anti-interference
- Separate Coagulation adapter and cuvettes for coagulation tests
- 7 filters (340 nm - 630 nm) + 2 free positions, ±2CML precision
- Real time curve and Auto drawing of QC figures
- Dynamic temperature control of peltier elements, 25°C 30°C, 37°C.
- Up to 300 test profiles can be programmed
- Memory for 200000 sample results with editable patient information
- 4 USB ports, 1 ethernet port and 1 USB Slave port
- Built-in printer with support external printer
- 7 inch true color large display with touch screen

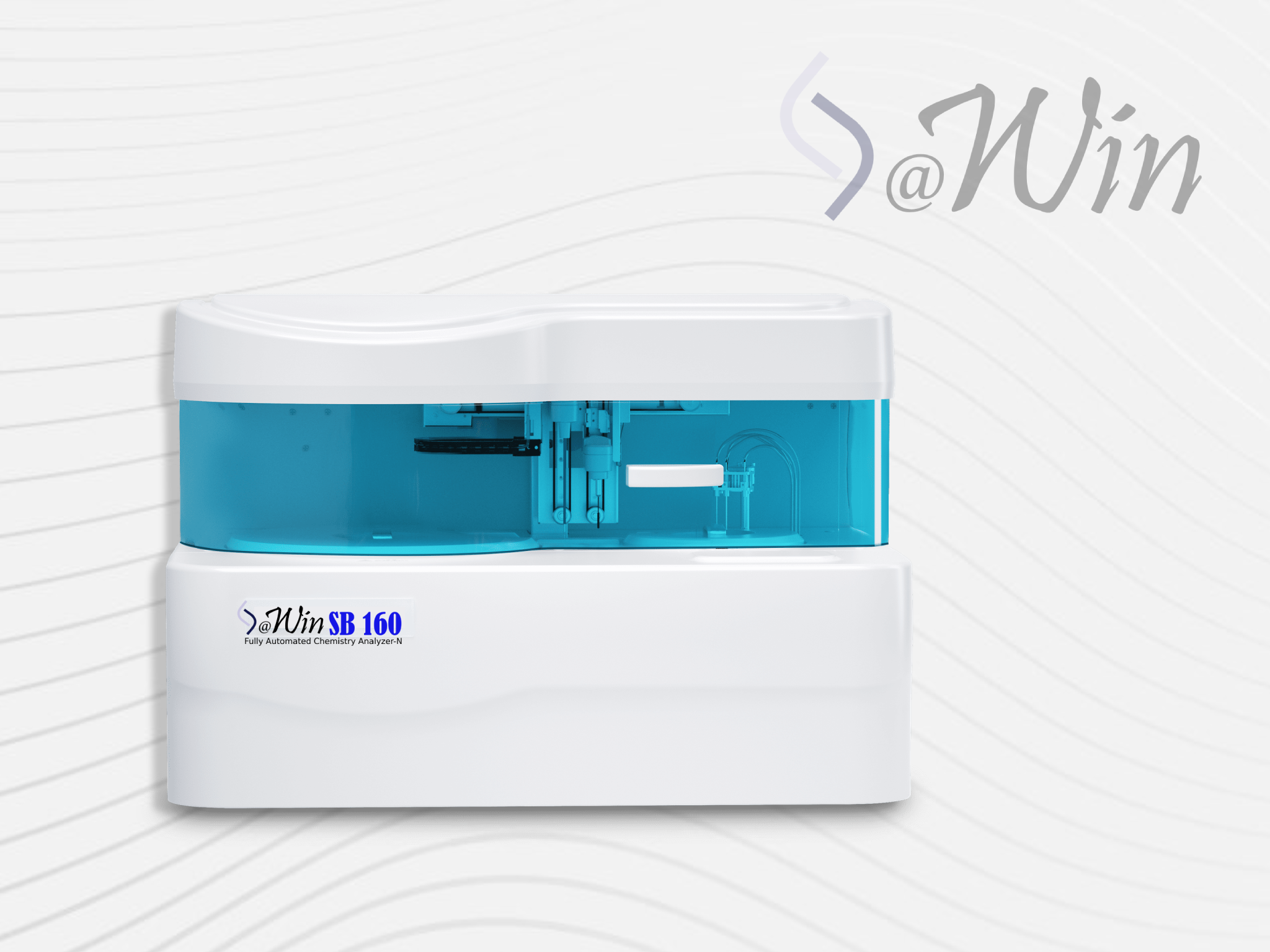

SB 160 Fully Automatic Chemistry Analyzer
- Test speed - Constant 150 tests/hour (Mono Reagent or Double Reagent).
- The test principle is colorimetric method, turbidimetry, with methods including 1-point end, 2-point end, fixed-time, and kinetics.
- Calibration type: Linear & Non-linear.
- Reagent tray consists of 80 reagent positions (40 for R1 & 40 for R2), with a non-stop cooling system using a peltier pad inside (24 hours at 2°C - 15°C).
- 44 reaction cuvettes made of new amorphous optical plastics, ensuring perfect transmittance.
- Reaction volume: 150μl - 330μl with a reaction time of 10 minutes.
- Sample unit consists of 40 sample tray positions, with sample volume ranging from 2μl - 30μl (step by 0.1μl).
- Sample probe features liquid surface detection, timely tracking for liquid volume, and collision avoidance.
- Excellent mixer design with Teflon coating—prevents water dropping (reducing carryover) and provides excellent mixing effects with a standard mixing procedure.
- High-precision ceramic syringe with a permanent ceramic piston, ensuring accurate dispensing as low as 0.1μl.
- *Advanced operating system with automatic sample dilution (decrease, increase, normal).
- Linear & non-linear calibration with multi-point calibration up to 8 points.
- Automatic reaction results checking and warning.
- Calibration results are automatically checked, with warning alarms and logs.
WINLAB Dry Bath Incubator
- User-frendly instrument for professional users.
- Wincol is microprocessor based electronically controlled digital colorimeter with 9 filters (410 nm - 640 nm)
- Wincol is compact and simple to use with 1 ml solution.
- Display in Percentage Transmission (%T), Absorbance (O.D) and 2 Concentration scales (C1 & C2) for final reporting values of samples/analytes.
- Suitable for endpoint chemistries and absorbance measurement.
- Inbuilt memory remains last K factor for concentration even after power off.
- Long life LED light source
- Unique facility of 410 nm Glycosylated Hemoglobin estimation.

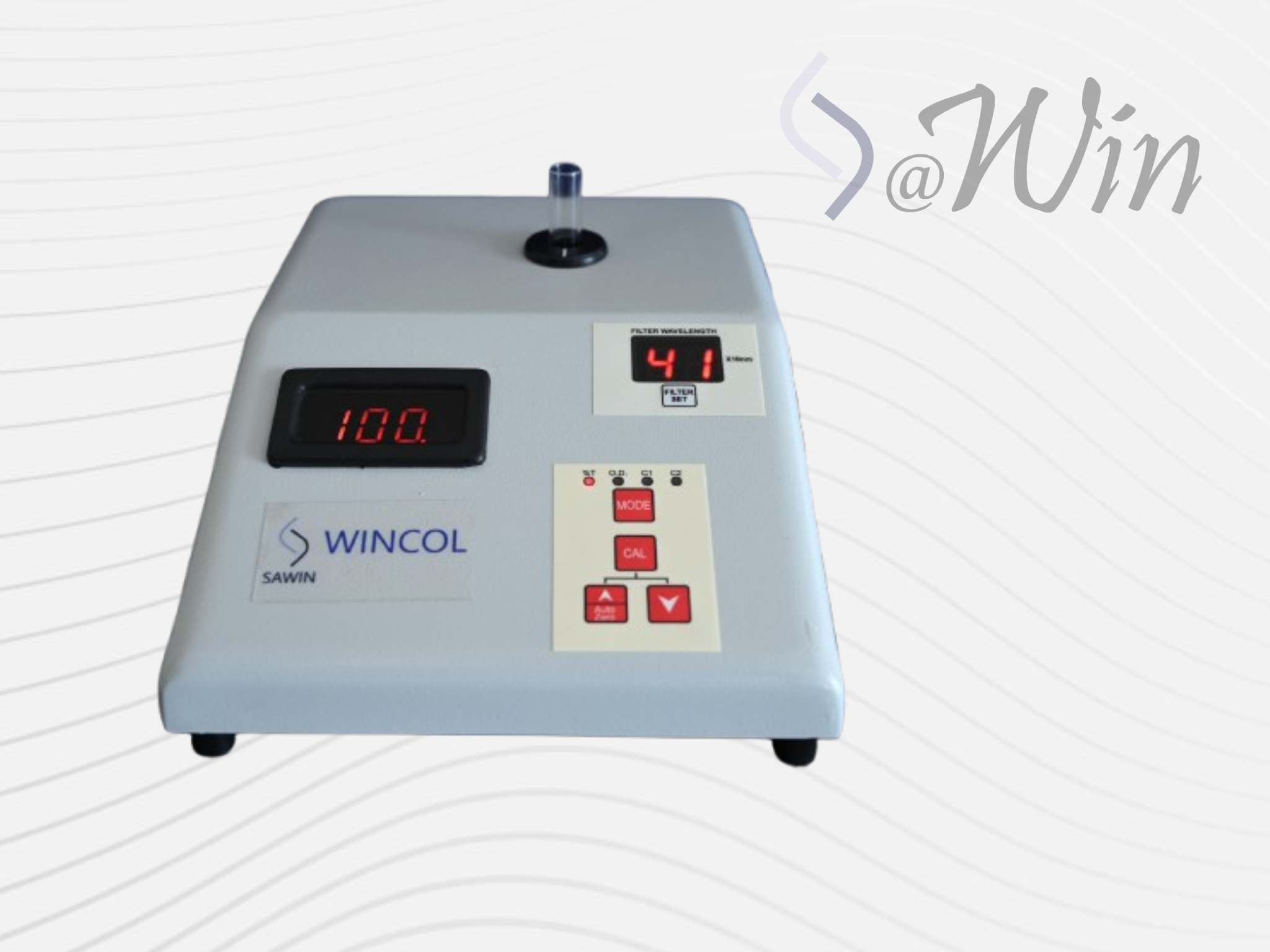

WINCOL Digital Colorimeter
- User-frendly instrument for professional users.
- Wincol is microprocessor based electronically controlled digital colorimeter with 9 filters (410 nm - 640 nm)
- Wincol is compact and simple to use with 1 ml solution.
- Display in Percentage Transmission (%T), Absorbance (O.D) and 2 Concentration scales (C1 & C2) for final reporting values of samples/analytes.
- Suitable for endpoint chemistries and absorbance measurement.
- Inbuilt memory remains last K factor for concentration even after power off.
- Long life LED light source
- Unique facility of 410 nm Glycosylated Hemoglobin estimation.

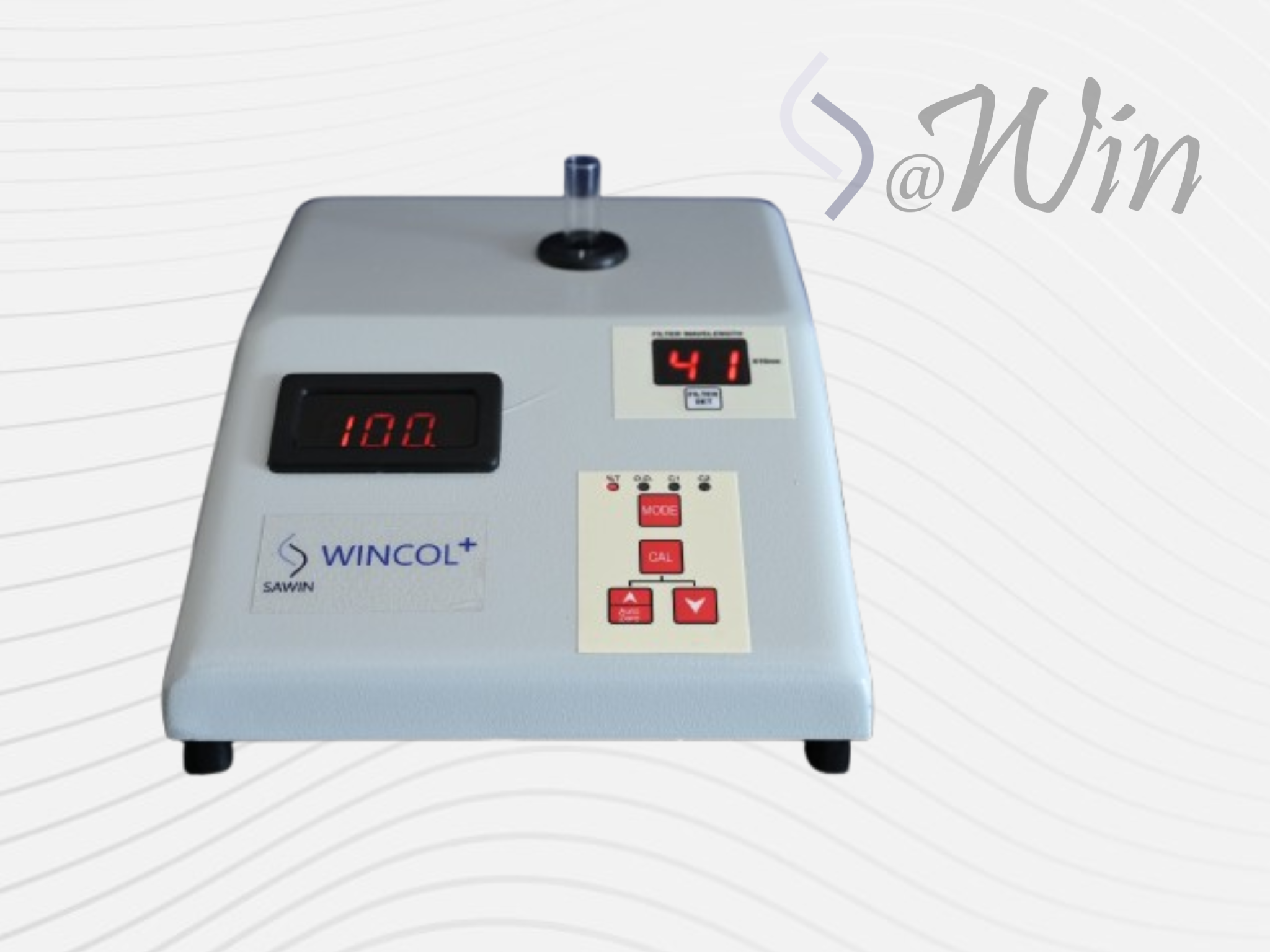

WINCOL+ Digital Colorimeter
- User-friendly instrument for professional users.
- Wincol+ is a specially designed power supply and display card along with a 6.2V 700 mAH Ni-Card battery pack.
- Wincol+ is a microprocessor based electronically controlled digital colorimeter with 9 filters (410 nm - 640 nm)
- Wincol+ is compact and simple to use with 1 ml solution.
- Display in Percentage Transmission (%T), Absorbance (O.D) and 2 Concentration scales (C1 & C2) for final reporting values of samples/analytes.
- Suitable for endpoint chemistries and absorbance measurement.
- Inbuilt memory remains the last K factor for concentration even after power off.
- Long life LED light source
- Unique facility of 410 nm Glycosylated Hemoglobin estimation.
